Gas concentration prediction model based on SSA-LSTM
-

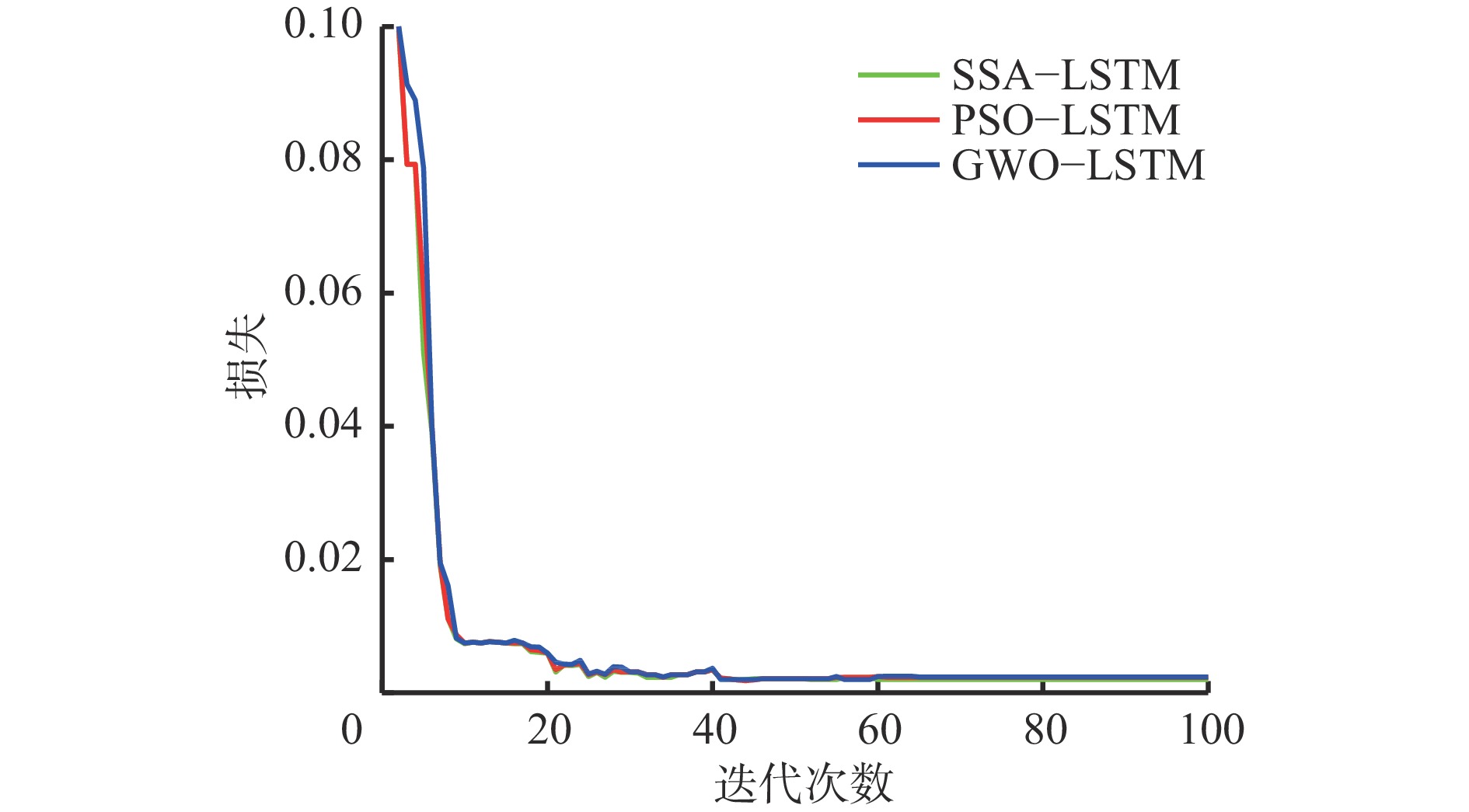

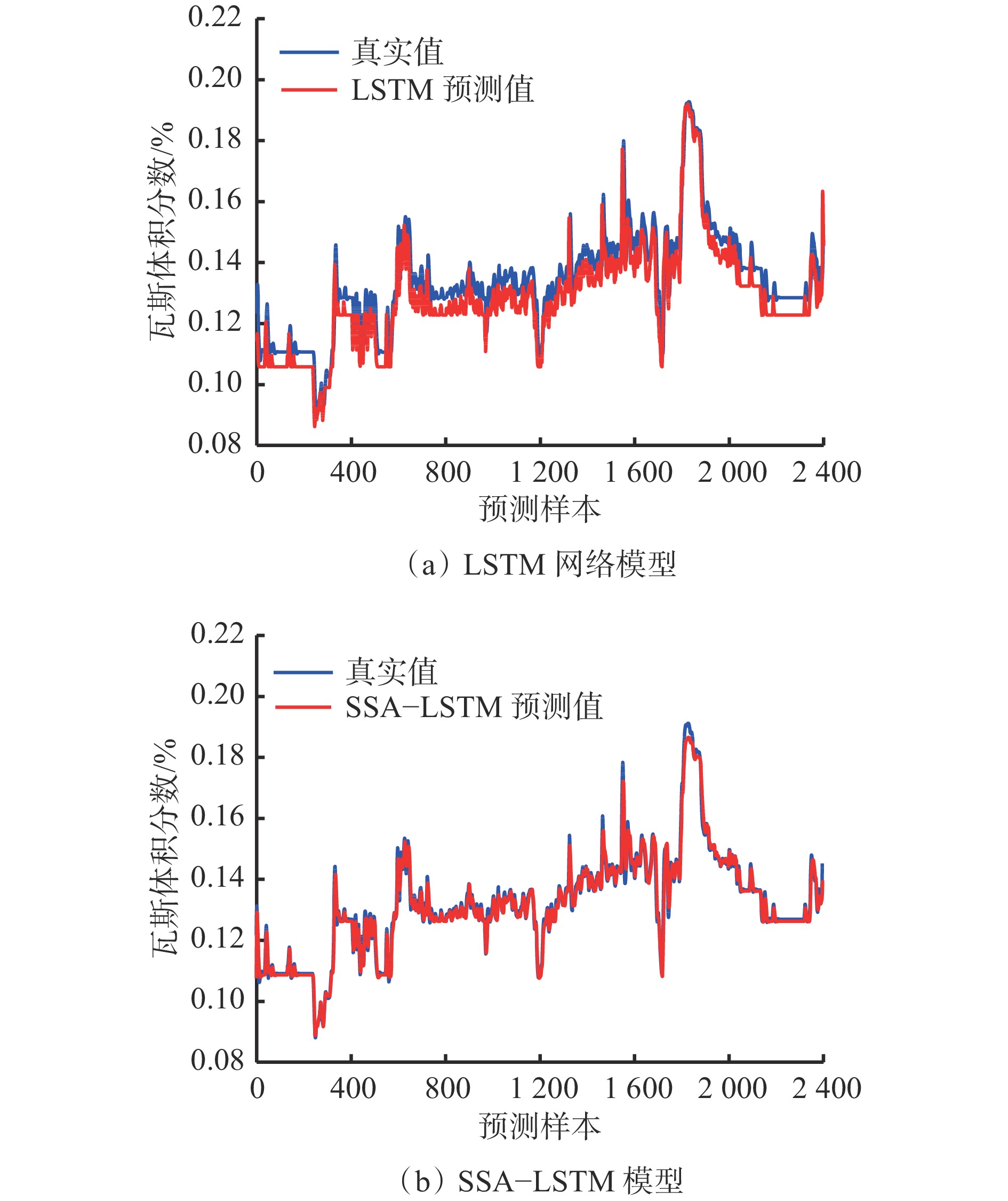

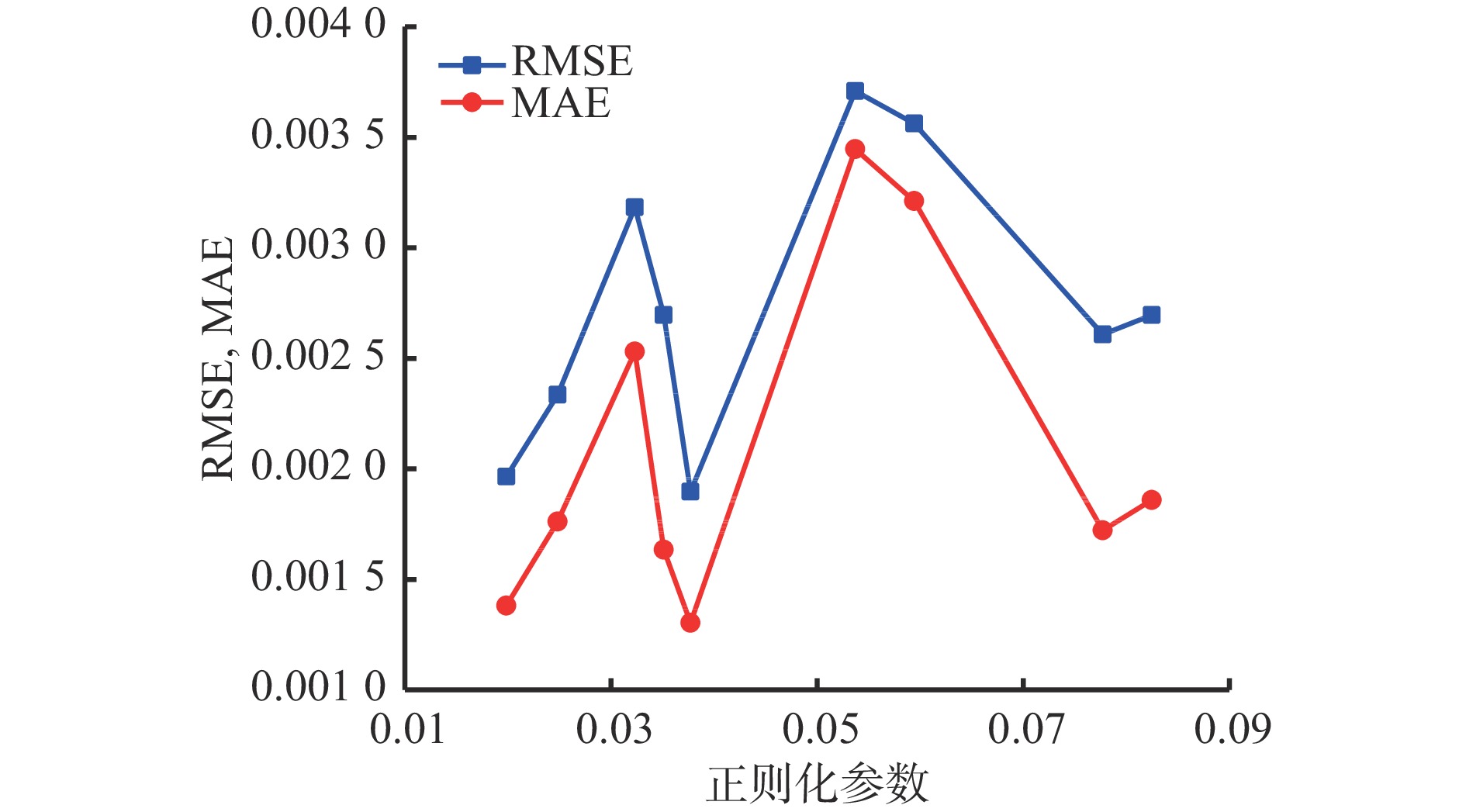

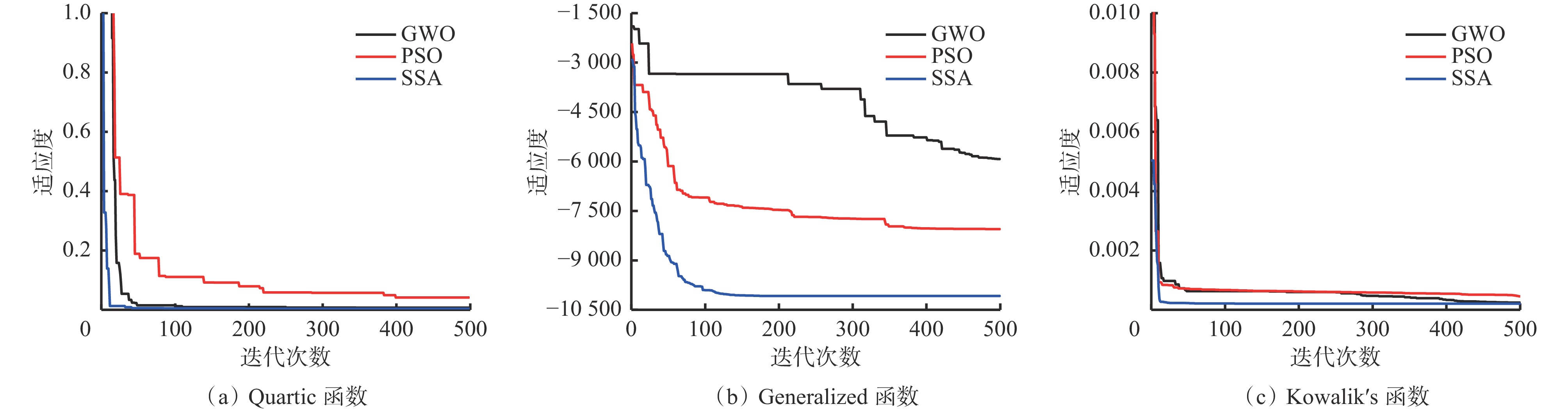

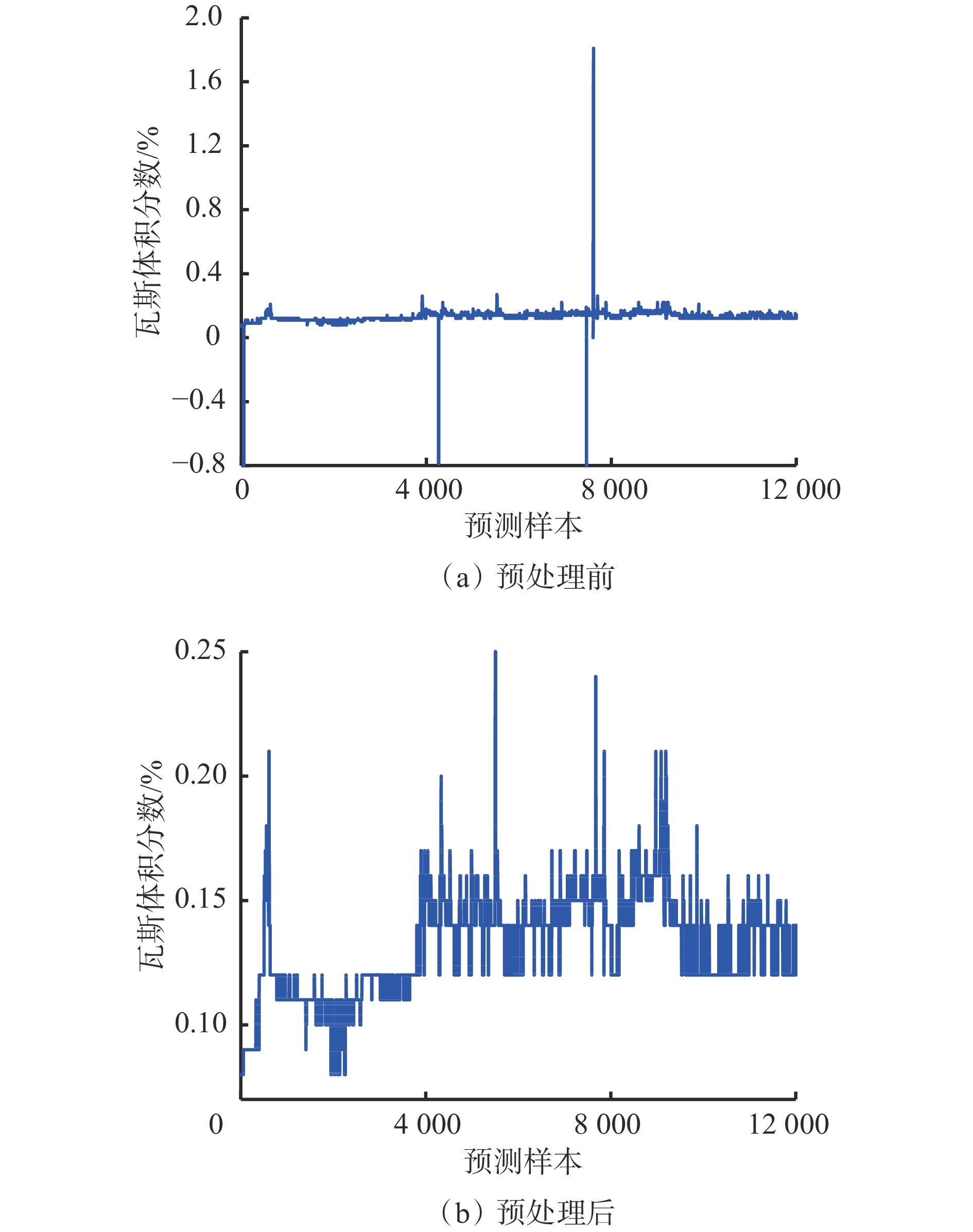

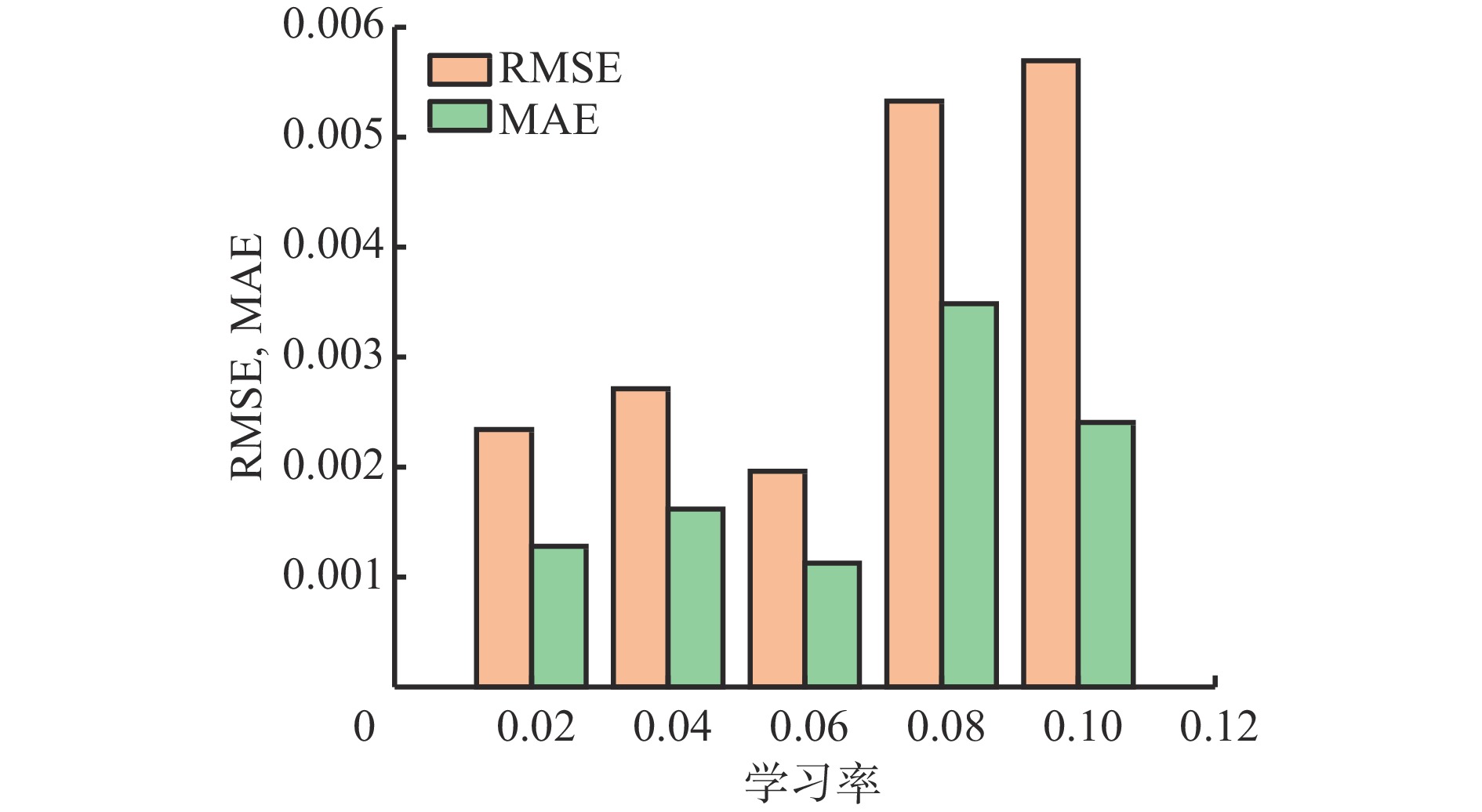

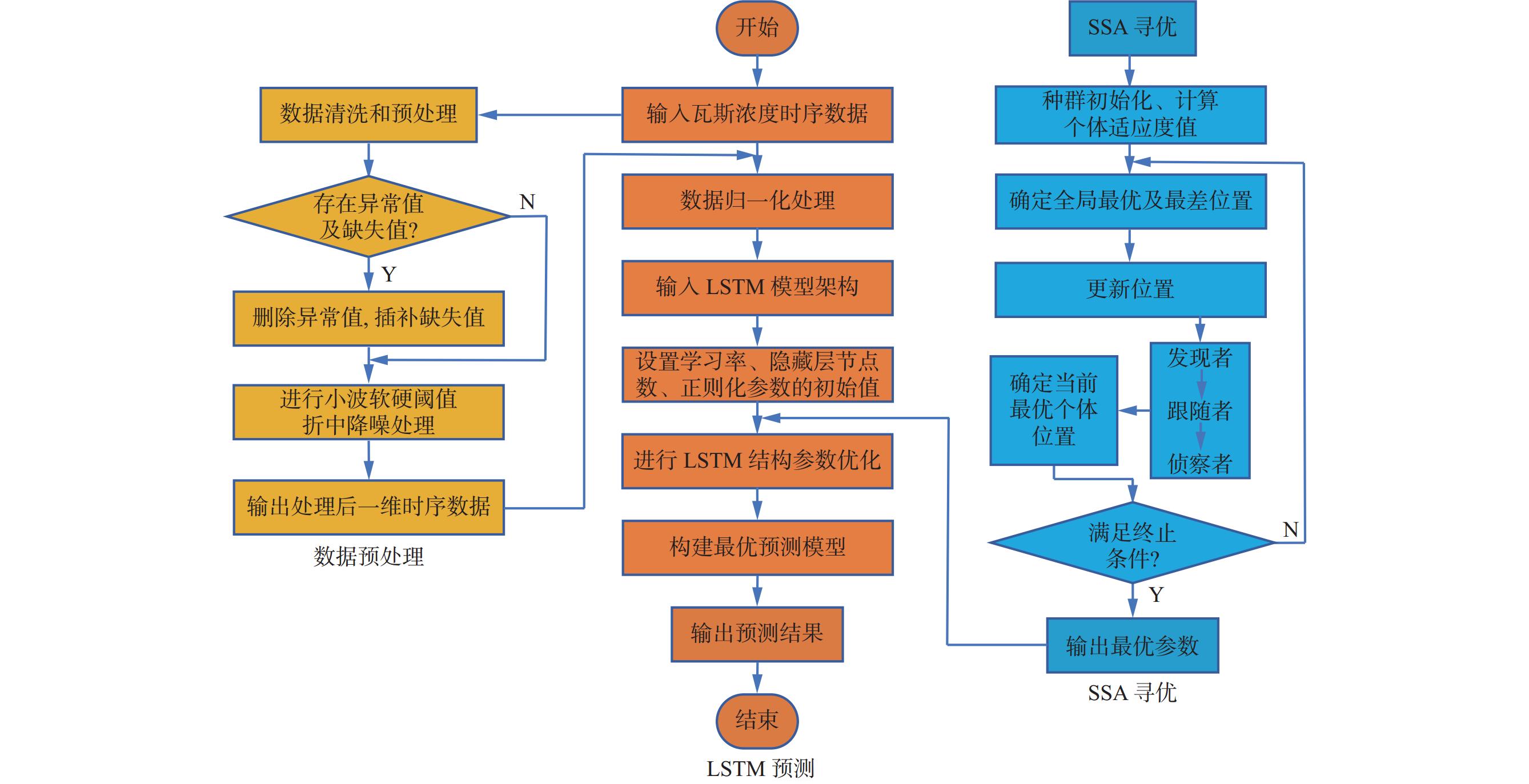

摘要: 为了更好地捕捉瓦斯浓度的时变规律及有效信息,实现对采煤工作面瓦斯浓度的精准预测,采用麻雀搜索算法(SSA)优化长短期记忆 (LSTM) 网络,提出了一种基于SSA−LSTM的瓦斯浓度预测模型。采用均值替换法对原始瓦斯浓度时序数据中的缺失数据及异常数据进行处理,再进行归一化和小波阈值降噪;对比测试了SSA与灰狼优化 (GWO) 算法、粒子群优化(PSO)算法的性能差异,验证了SSA在寻优精度、收敛速度和适应能力等方面的优势;利用SSA的自适应性依次对LSTM的学习率、隐藏层节点个数、正则化参数等超参数进行寻优,以此来提高全局寻优能力,避免预测模型陷入局部最优;将得到的最佳超参数组合代入LSTM网络模型中,输出预测结果。将SSA−LSTM与LSTM、GWO−LSTM、PSO−LSTM瓦斯浓度预测模型进行比较,实验结果表明:基于SSA−LSTM的瓦斯浓度预测模型的均方根误差(RMSE)较LSTM,PSO−LSTM,GWO−LSTM分别减少了77.8%,58.9%,69.7%;平均绝对误差(MAE)分别减少了83.9%,37.8%,70%,采用SSA优化的LSTM预测模型相较于传统LSTM模型具有更高的预测精度和鲁棒性。Abstract: In order to better capture the time-varying patterns and effective information of gas concentration, and achieve precise prediction of gas concentration in coal working faces, a gas concentration prediction model based on SSA-LSTM is proposed by optimizing the long short term memory (LSTM) network using sparrow search algorithm (SSA). The model uses the mean replacement method to process missing and abnormal data in the original gas concentration time series data, followed by normalization and wavelet threshold denoising. The performance differences between SSA and grey wolf optimization (GWO) and particle swarm optimization (PSO) algorithms are compared and tested. The result verifies the advantages of SSA in terms of optimization precision, convergence speed, and adaptability. By utilizing the adaptability of SSA, the hyperparameters of LSTM, such as learning rate, number of hidden layer nodes, and regularization parameters, are sequentially optimized to improve the global optimization capability and avoid the prediction model falling into local optimum. The obtained optimal hyperparameter combination is substituted into the LSTM network model and the prediction results are output. Comparing SSA-LSTM with LSTM, GWO-LSTM, and PSO-LSTM gas concentration prediction models, the experimental results show that the root mean square error (RMSE) of the gas concentration prediction model based on SSA-LSTM is reduced by 77.8%, 58.9%, and 69.7% compared to LSTM, PSO-LSTM, and GWO-LSTM, respectively. The mean absolute error (MAE) decreases by 83.9%, 37.8%, and 70%, respectively. The LSTM prediction model optimized by SSA has higher prediction precision and robustness compared to traditional LSTM models.
-
表 1 不同预测模型超参数选择
Table 1. Selection of hyperparameters for different prediction models
模型 学习率 隐藏层节点个数 正则化参数 SSA−LSTM 0.06 40 0.038 3 PSO−LSTM 0.03 60 0.051 2 GWO−LSTM 0.05 80 0.041 6 表 2 不同模型预测结果评价
Table 2. Evaluation of prediction results of different models
模型 MAE RMSE $ {R}^{2} $ 运行时间/s LSTM 0.011 35 0.011 7 0.577 6 45 PSO−LSTM 0.002 93 0.004 8 0.908 9 50 SSA−LSTM 0.001 82 0.002 6 0.962 5 47 GWO−LSTM 0.006 15 0.008 6 0.780 3 49 -
