采煤工作面CH4大样本数据感知关键技术及监测模式研究

贺耀宜, 代左朋, 杨耀, 屈世甲, 张清, 孙旭峰, 张涛

贺耀宜,代左朋,杨耀,等. 采煤工作面CH4大样本数据感知关键技术及监测模式研究[J]. 工矿自动化,2024,50(11):17-25, 91. DOI: 10.13272/j.issn.1671-251x.18218
引用本文: 贺耀宜,代左朋,杨耀,等. 采煤工作面CH4大样本数据感知关键技术及监测模式研究[J]. 工矿自动化,2024,50(11):17-25, 91. DOI: 10.13272/j.issn.1671-251x.18218
HE Yaoyi, DAI Zuopeng, YANG Yao, et al. Key technologies and monitoring model for large-scale data perception of CH4 in coal mining faces[J]. Journal of Mine Automation,2024,50(11):17-25, 91. DOI: 10.13272/j.issn.1671-251x.18218
Citation: HE Yaoyi, DAI Zuopeng, YANG Yao, et al. Key technologies and monitoring model for large-scale data perception of CH4 in coal mining faces[J]. Journal of Mine Automation,2024,50(11):17-25, 91. DOI: 10.13272/j.issn.1671-251x.18218

采煤工作面CH4大样本数据感知关键技术及监测模式研究

基金项目: 江苏省成果转化项目(BA2022040);中国煤炭科工集团有限公司科技创新创业资金专项项目−国际科技合作项目(2021-2-GH003);天地科技股份有限公司科技创新创业资金专项项目(2019-TD-ZD007);天地(常州)自动化股份有限公司基金项目(2024TY2002,2024TY2005)。
详细信息
    作者简介:

    贺耀宜(1974—),男,陕西蓝田人,研究员,硕士,主要从事煤矿监测监控与信息化、物联网应用研究工作,E-mail:hyy@cari.com.cn

  • 中图分类号: TD712

Key technologies and monitoring model for large-scale data perception of CH4 in coal mining faces

  • 摘要:

    全面感知和实时互联是智能化煤矿最基本的功能要素。现阶段采煤工作面整体环境感知能力不足,感知设备设置监测点数量有限,末端无线网络不够健全,缺乏高精度位置服务,导致矿井与采煤工作面全面感知所需数据样本量偏少,信息透明度不够,隐患识别和安全预警准确性偏低。针对该问题,以采煤工作面为应用场景,以CH4为监测对象,研究煤矿工作环境参数大样本数据感知关键技术及监测模式。通过研究无线低功耗CH4传感与自标校技术,实现在采煤工作面布置大量CH4传感器进行全面感知,解决长时间免标校维护的技术难题;通过研究传感设备对象编码与定位技术,解决大量传感设备的身份和位置识别难题;通过研究适用于矿井线性空间的高速无线数据传输技术,以及无线骨干网链路节点的路由自发现、网络故障自主发现、故障节点及时隔离和自恢复技术,解决采煤工作面布设大量CH4传感器及工作面移动带来的数据实时传输与维护问题;通过研究基于边缘计算的大样本数据连续监测模式,针对采集的大量CH4传感数据,利用空间数字云图技术,实现整个采煤工作面CH4面域连续监测和全面感知及作业现场数据分级处理。采煤工作面CH4大样本数据感知关键技术及监测模式为其他矿井环境参数的全面感知研究提供了基础技术积累。

    Abstract:

    Comprehensive perception and real-time connectivity are fundamental functional elements of intelligent coal mines. Currently, coal mining faces suffer from insufficient overall environmental perception capabilities. Limitations include the small number of monitoring points for perception devices, inadequate terminal wireless network coverage, and a lack of high-precision positioning services. These shortcomings result in inadequate data sample sizes required for comprehensive perception of mines and coal mining faces, low information transparency, and reduced accuracy in hazard identification and safety warnings. To address these issues, this study investigated coal mining faces as the application scenario and CH4 as the monitoring target, exploring key technologies and monitoring models for large-scale data perception of coal mine environmental parameters. By investigating low-power wireless CH4 sensing and self-calibration technologies, the study enabled the deployment of numerous CH4 sensors in coal mining faces for comprehensive perception, resolving technical challenges associated with calibration-free maintenance. The study also addressed the difficulties of identifying the identities and locations of numerous sensors by developing device encoding and positioning technologies for sensing devices. Additionally, the study proposed high-speed wireless data transmission technologies suitable for the linear space of mines, along with autonomous routing discovery, network fault detection, timely isolation of fault nodes, and self-recovery for wireless backbone link nodes. These advancements solved the real-time data transmission and maintenance challenges arising from the deployment of large numbers of CH4 sensors and the mobility of coal mining faces. Furthermore, a continuous monitoring model for large-scale data based on edge computing was developed. This model processed the collected CH4 sensor data using spatial digital cloud mapping technology to achieve continuous monitoring and comprehensive perception of CH4 across the entire coal mining face, as well as hierarchical data processing at operational sites. The key technologies and monitoring model for large-scale data perception of CH4 in coal mining faces accumulate foundational technical knowledge for comprehensive perception studies of other mine environmental parameters.

  • 图  1   工作面CH4大样本数据分级处理模式

    Figure  1.   Large sample data graded processing mode for CH4 in working face

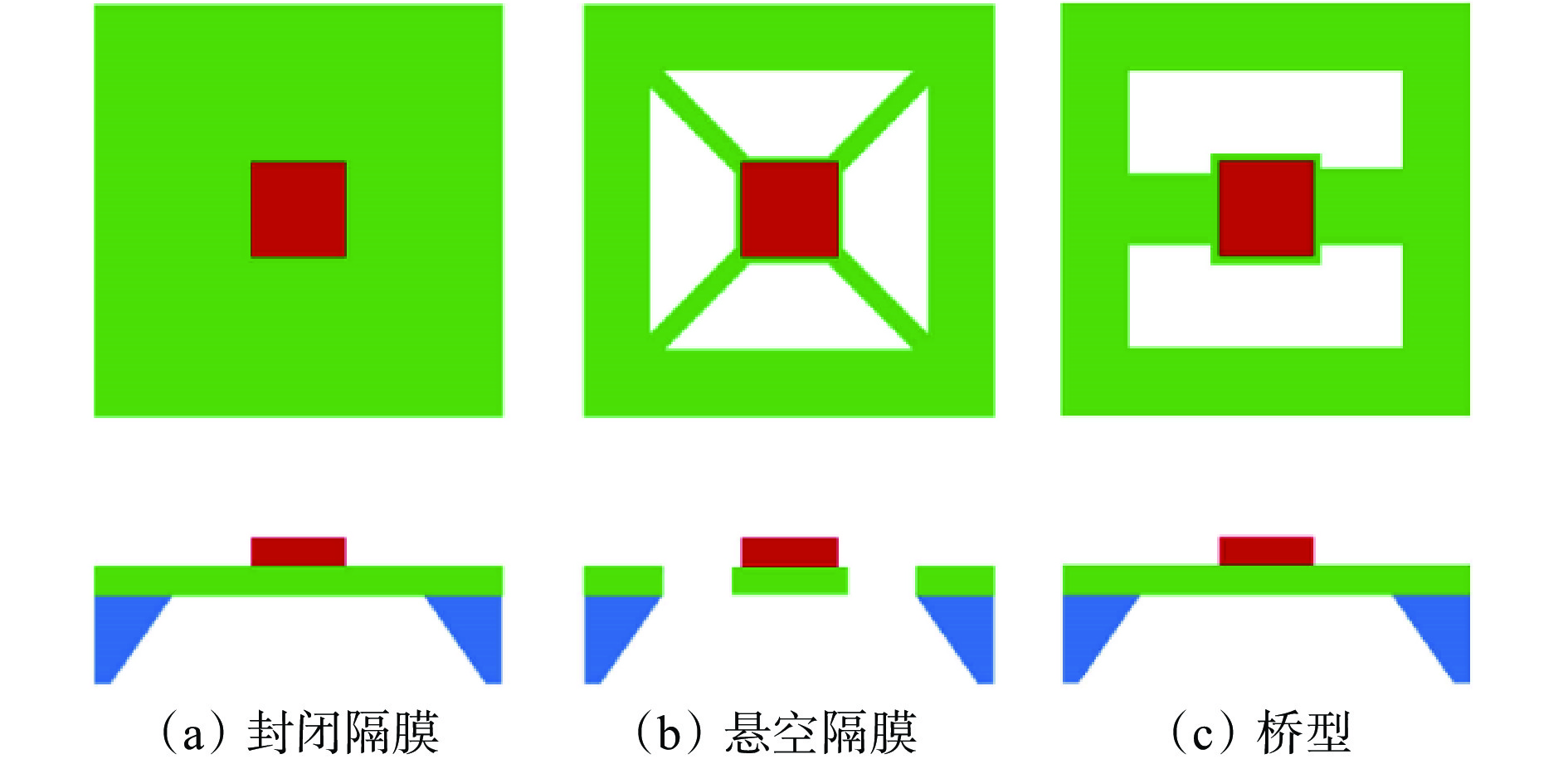

    图  2   MEMS微型加热板芯片结构

    Figure  2.   Structure of micro-electro-mechanical system (MEMS) micro heating plate chip

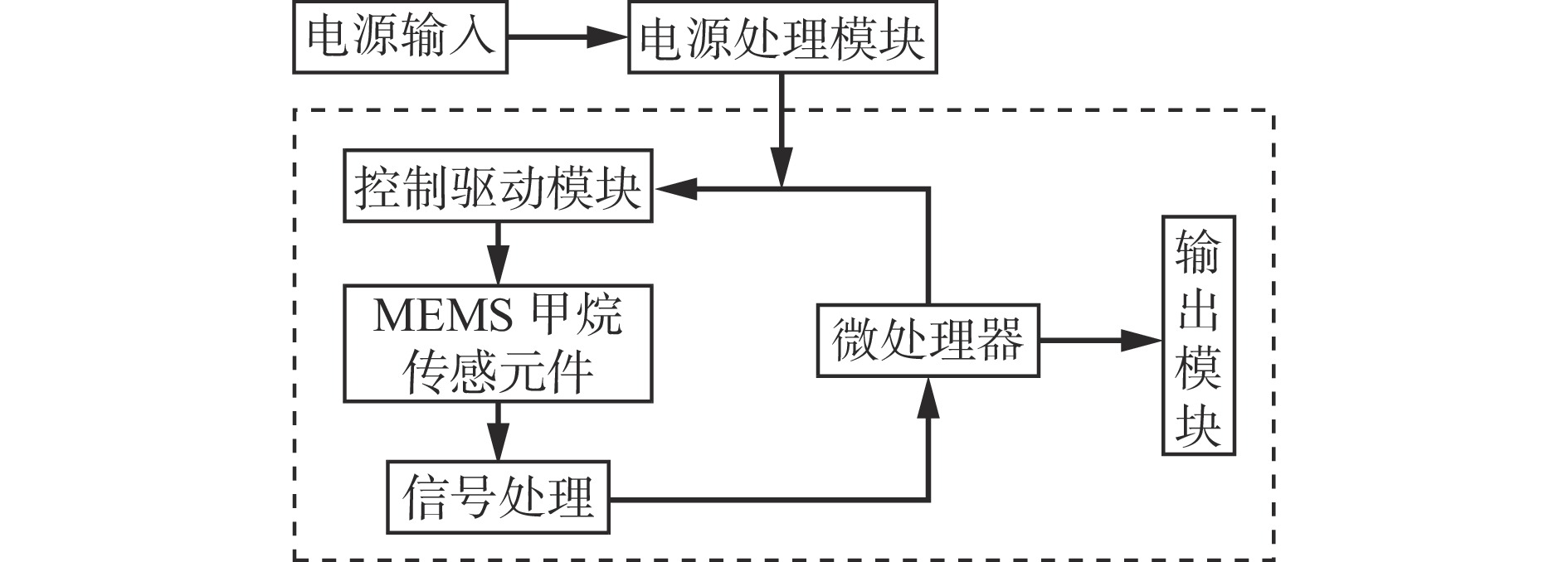

    图  3   MEMS CH4传感模组的微处理器控制逻辑

    Figure  3.   Logical control of micro controller in MEMS CH4 sensor

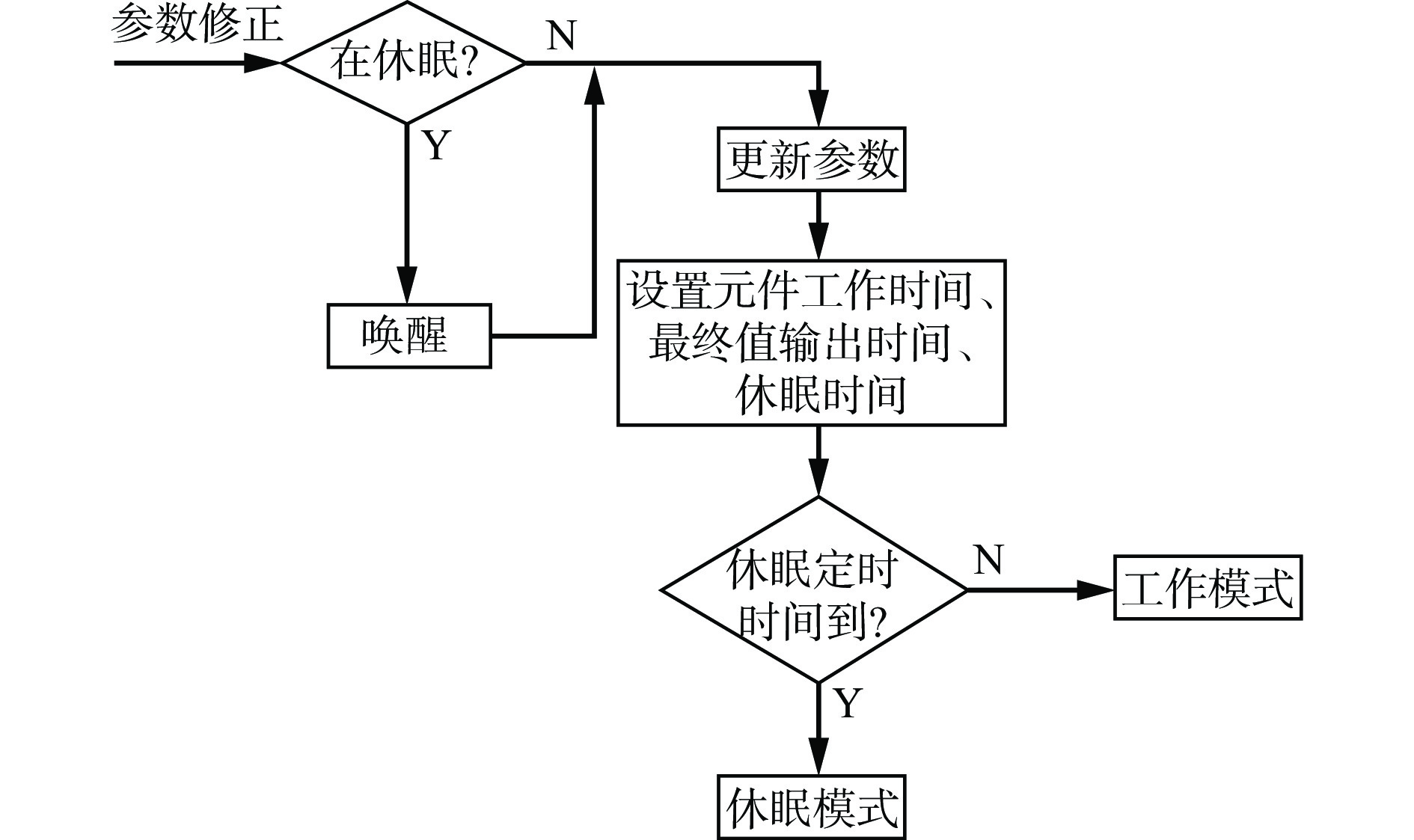

    图  4   MEMS CH4传感模组低功耗休眠策略

    Figure  4.   Sleep schedule for low-power consumption of MEMS CH4 sensor

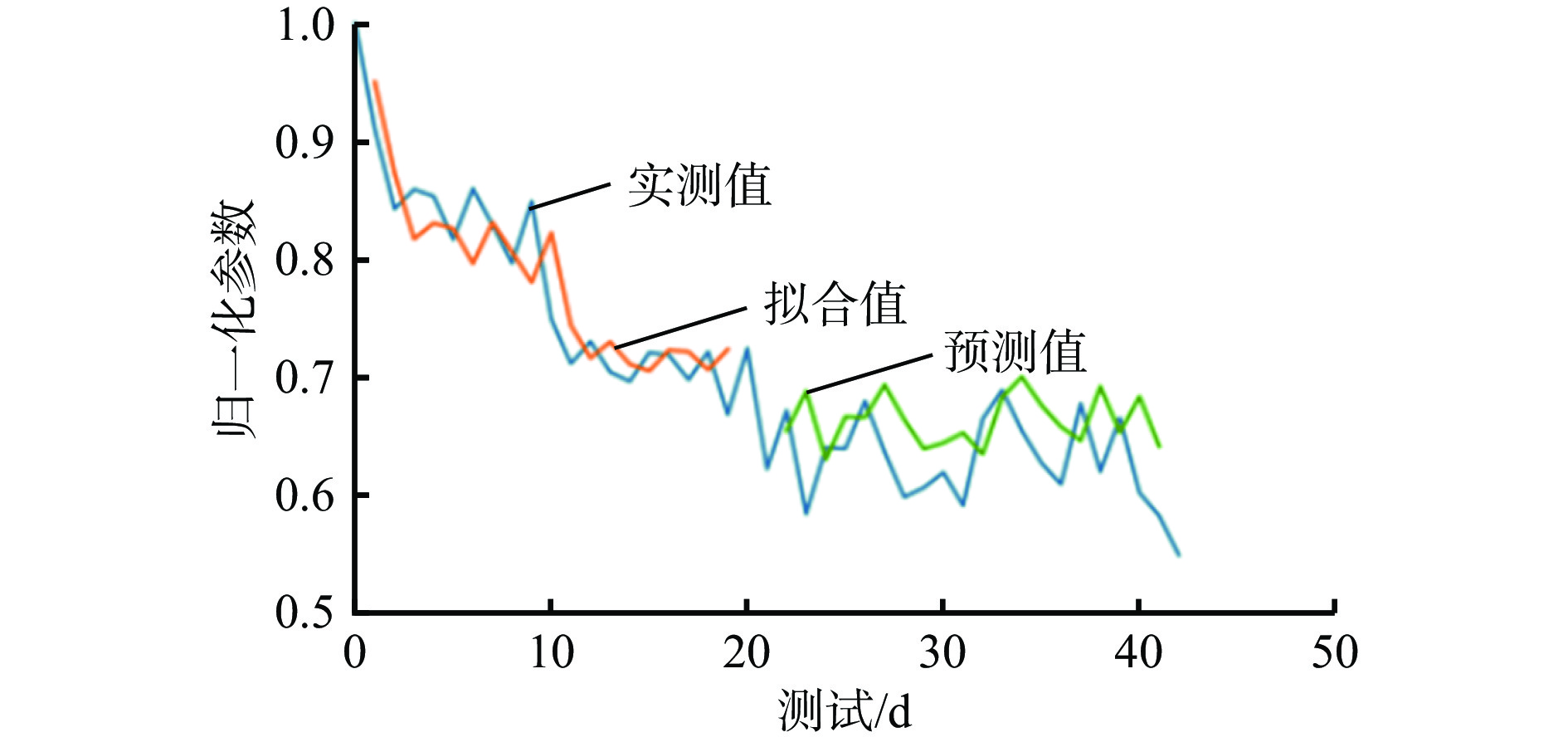

    图  5   MEMS CH4传感模组未补偿数据与拟合/预测值对比

    Figure  5.   Comparison between MEMS CH4 sensor data without compensation and the fitted value or the predicted value

    图  6   MEMS CH4传感设备自标校方式

    Figure  6.   Self calibration mode of MEMS CH4 sensor

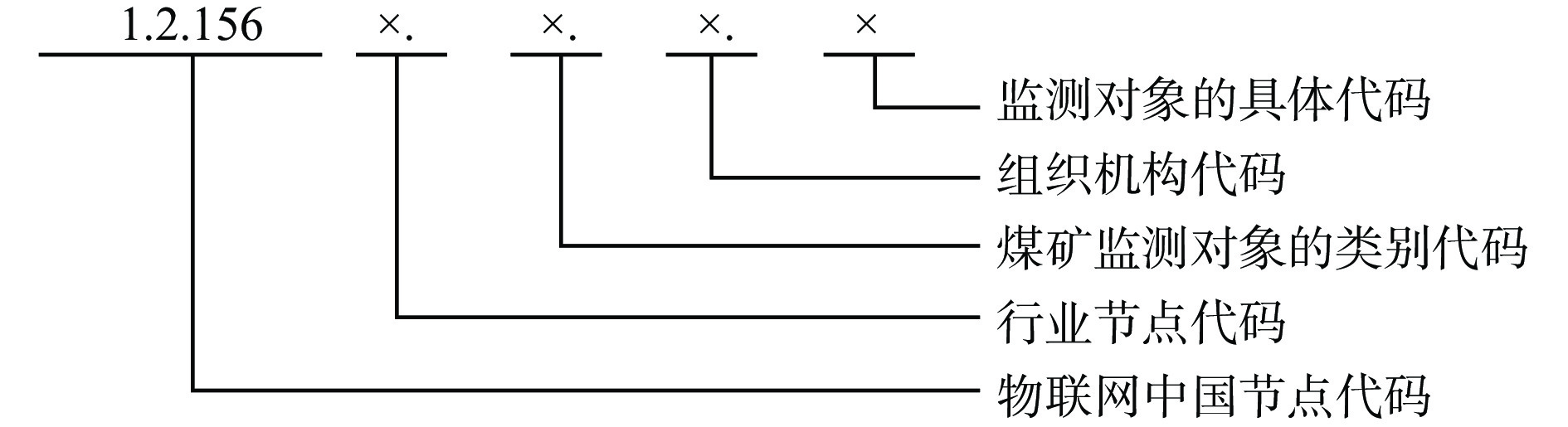

    图  7   煤矿传感设备(智能设备)对象编码分层结构

    Figure  7.   Object encoding layered structure of mine sensor (intelligent equipment)

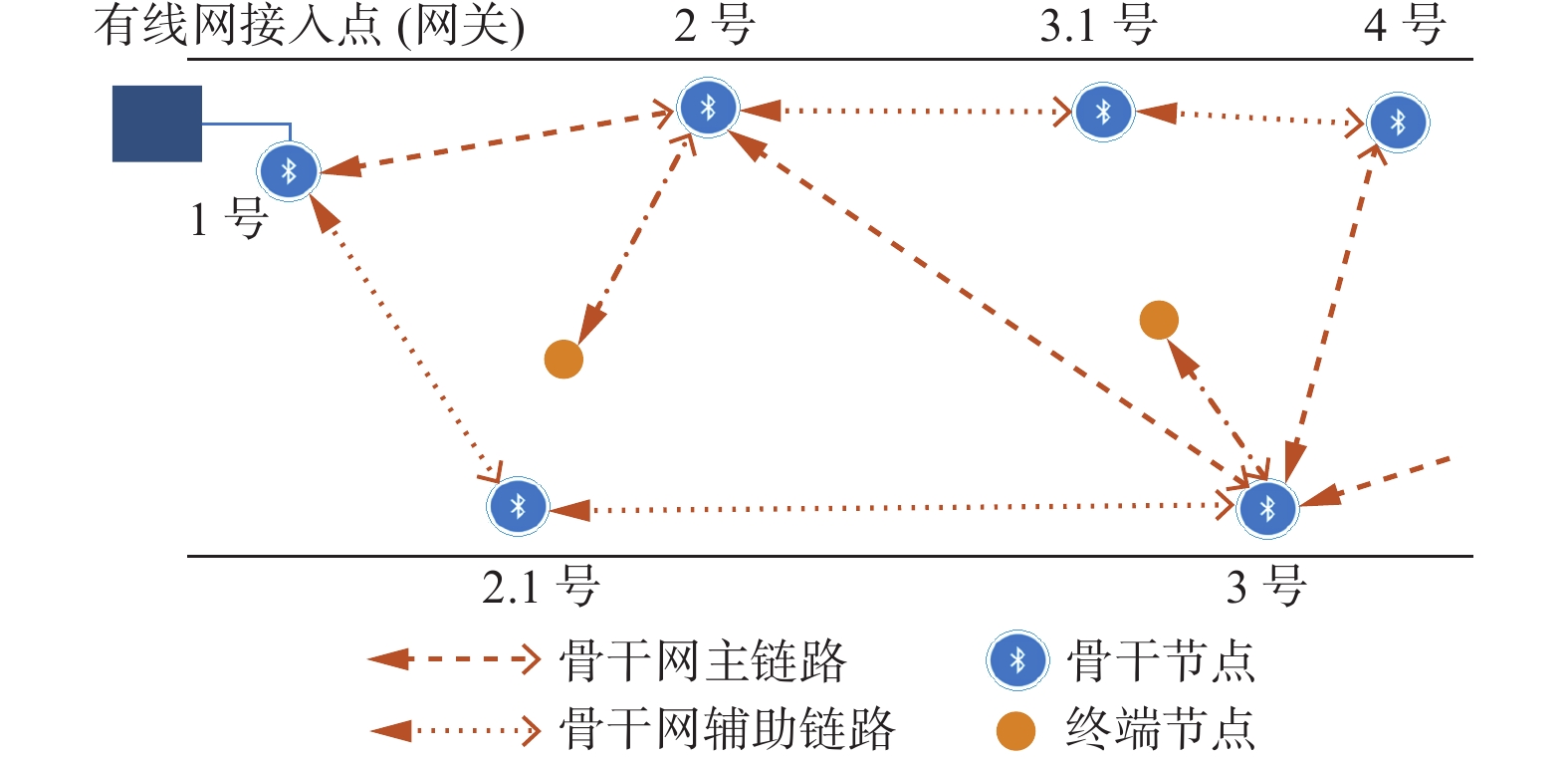

    图  8   无线自组网络拓扑结构

    Figure  8.   Topology structure of wireless ad-hoc network

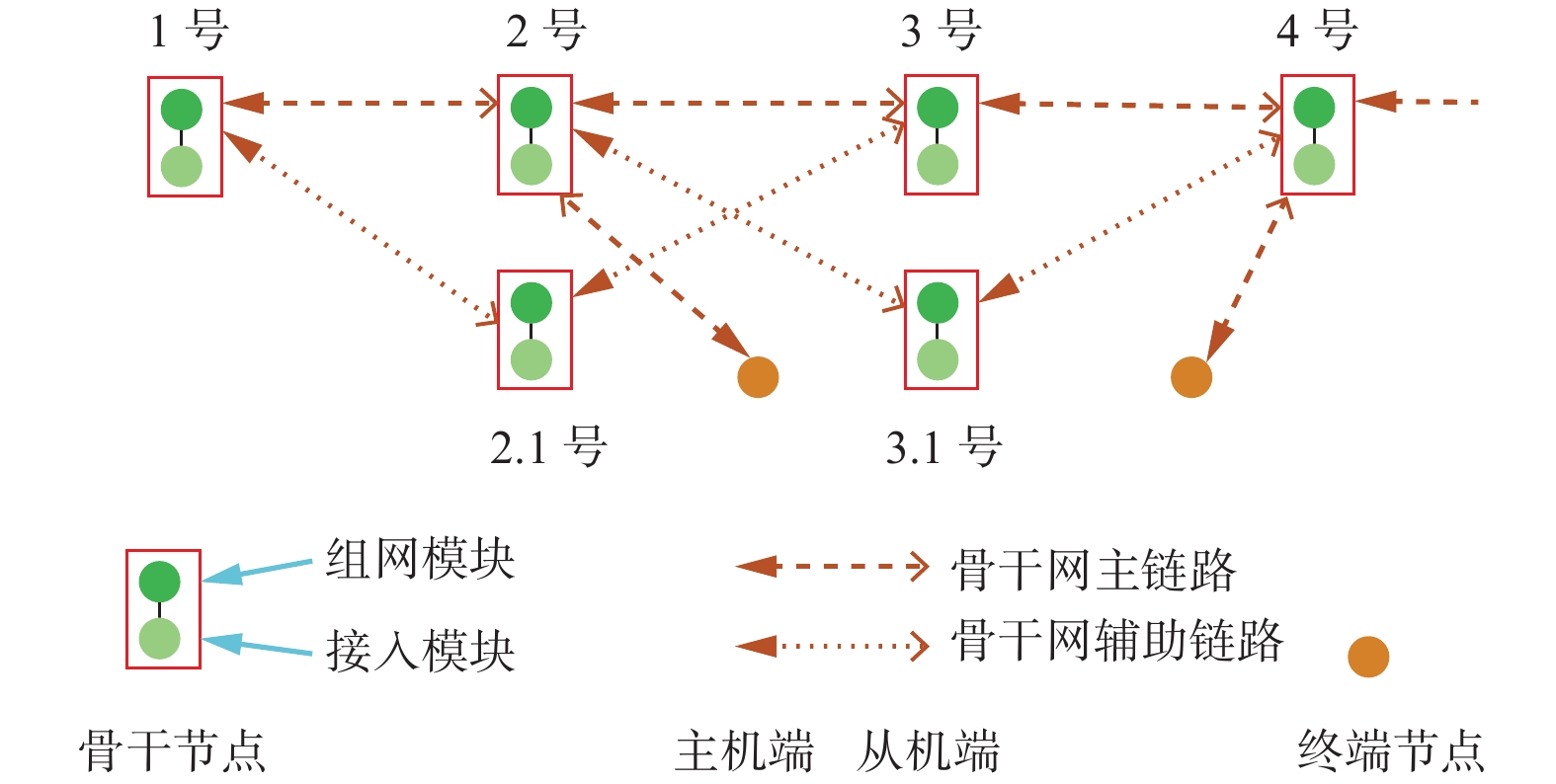

    图  9   骨干节点组成与通信方式

    Figure  9.   Component of backbone nodes and their communication mode

    图  10   采煤工作面CH4大样本数据连续监测技术路线

    Figure  10.   Technique route of large sample data monitoring for CH4 in working face

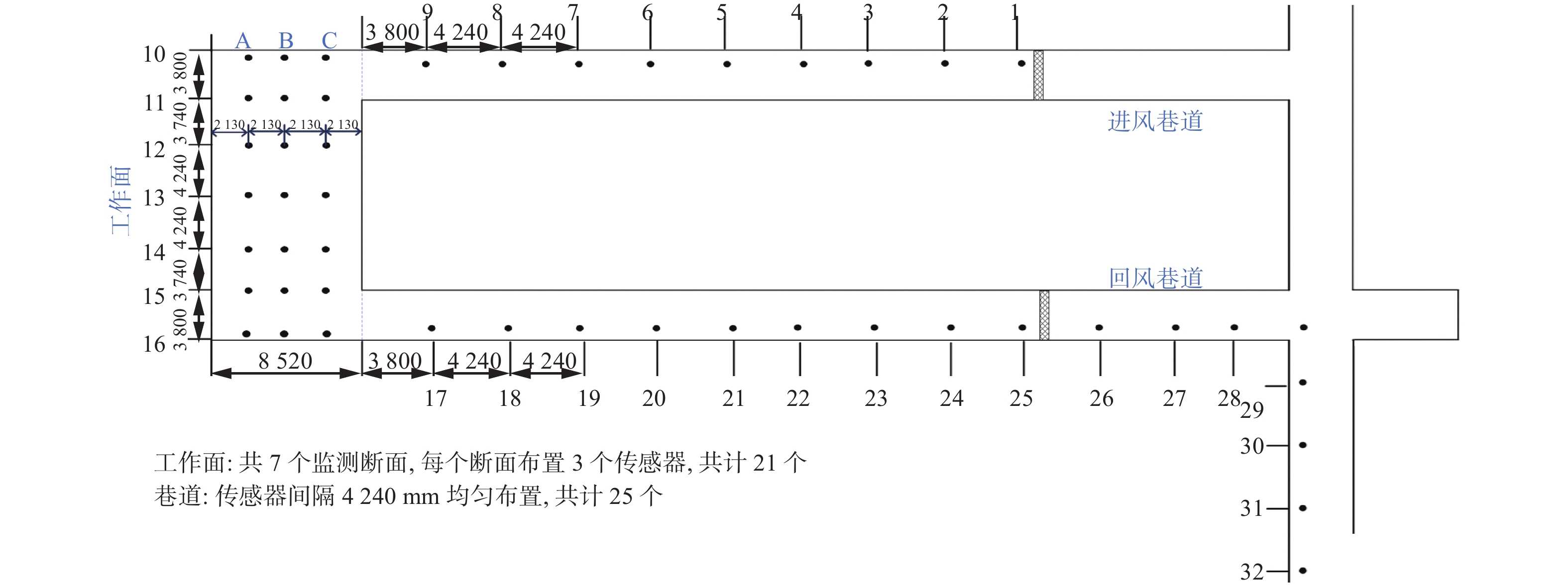

    图  11   无线低功耗MEMS CH4传感器布置方案

    Figure  11.   Layout scheme of wireless MEMS CH4 sensors with low power consumption

    图  12   基于模拟巷道的工作面CH4空间数字云图

    Figure  12.   Spatial CH4 data cloud map in working face based on simulated roadway

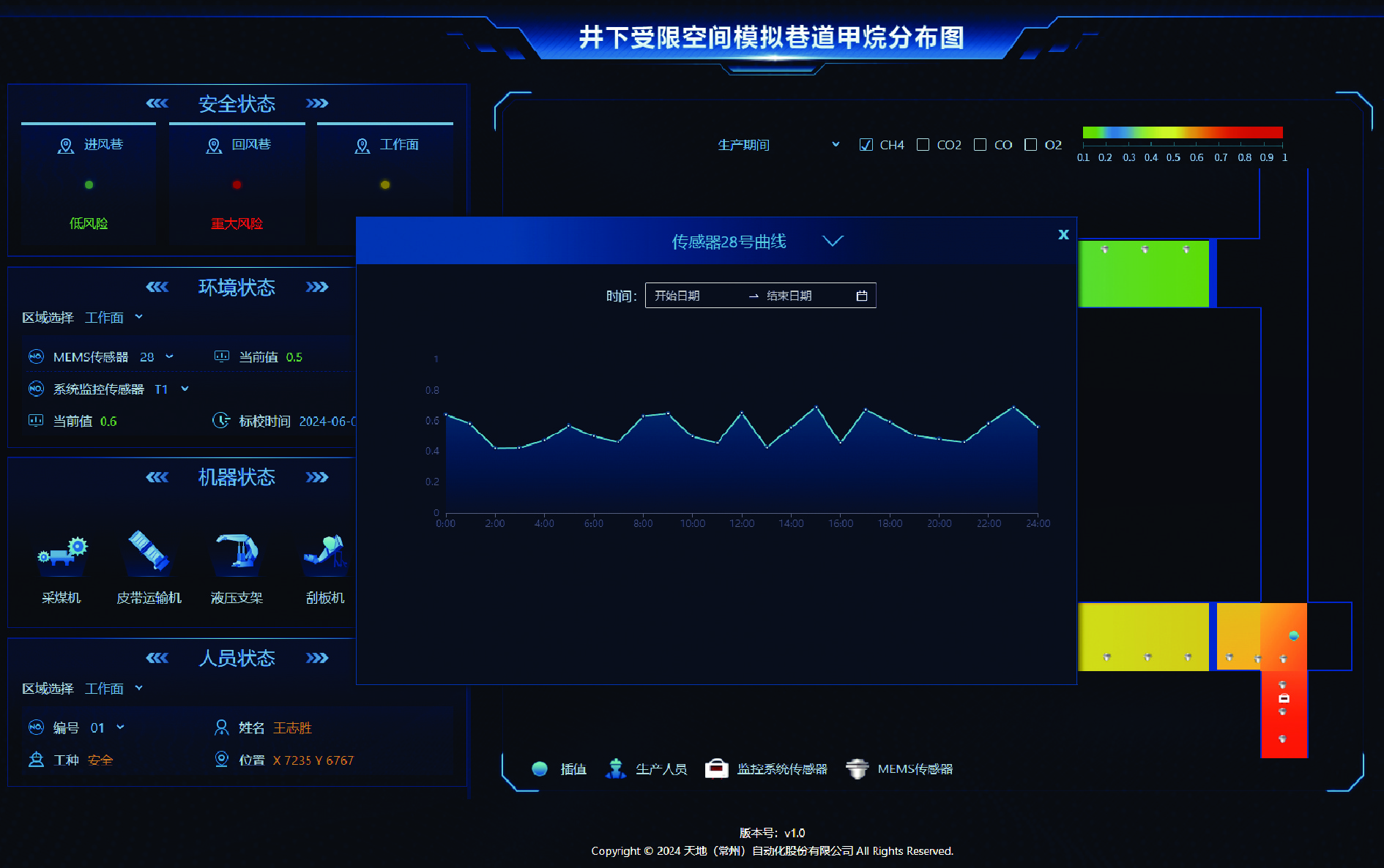

    图  13   MEMS CH4传感器数据变化

    Figure  13.   Change of MEMS CH4 sensor data
